Power Supply Reference – Test A Power Supply With A Paperclip

Motherboard Pin Outs

24-pin ATX, main plug on motherboards (short pin 16 to any GND to turn the PSU on)

http:⁄⁄pinouts.ru⁄Power⁄atx_v2_pinout.shtml

20-pin ATX, main plug on older motherboards (short pin 14 to any GND to turn the PSU on)

http:⁄⁄pinouts.ru⁄Power⁄atxpower_pinout.shtml

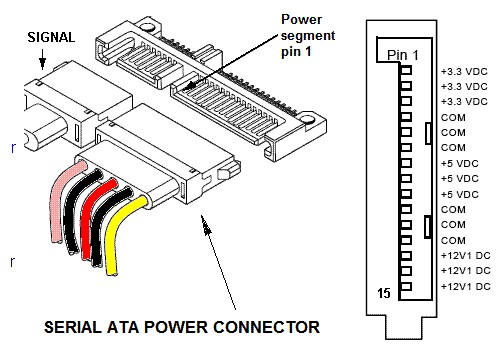

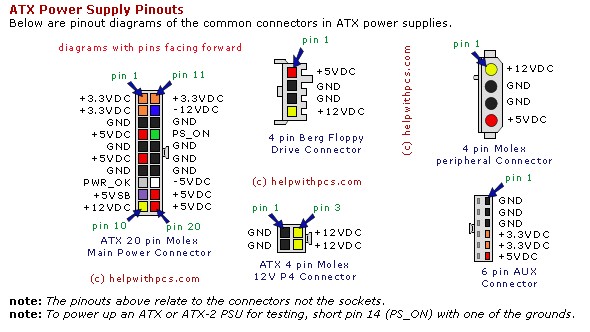

ATX Power Supply Pinout Tables

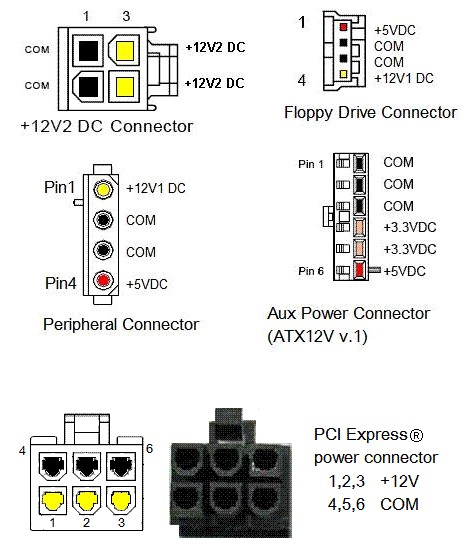

Pinout Tables for ATX v2.2 Power Supply Connectors

For more details go to http:⁄⁄www.smpspowersupply.com⁄connectors-pinouts.html

For more details go to http:⁄⁄www.smpspowersupply.com⁄connectors-pinouts.html

Courtesy of http:⁄⁄www.smpspowersupply.com⁄
